358 High-Security Fence

Name: 358 HighSecurity Fence
Brand: LNF-Clearvu Fence
Price: 18.66 USD

Quality 358 High-Security Fence wholesale

Brand Name : LNF-Clearvu Fence

Model Number : 3"x0.5"x 8ga wire euqal to 12.70mm x 76.20mm x 4.00mm wire

Certification : ISO

Place of Origin : South African Design China Made

MOQ : 500 liner meter

Price : 18.66$ per liner meter

Payment Terms : TT30% deposit balance 70% at sight of finished products

Supply Ability : 10000 liner meters

Delivery Time : 7 work days

Packaging Details : All metal Pallets

Materials : Q235 STEEL

Color : Painted any color

Mesh Opening : 3"x0.5" or 12.70mm x 76.20mm

Diameter : 3.00mm,3.5mm ,3.8mm,4.00mm

Treatment : Gal ,Hot Dipped Gal,Powder Painted

Mesh Type : Weld at intersection

Market : African ,USA ,Australia

Service Life : 5 Year -25 Years depand on treatment

Contact Now

358 High-Security Fence For Sale

The 358 high-security fence system is well known globally as an anti-climb & anti-cut barrier while providing the lowest level of high-quality carbon steel wires. It is designed to give attractive, long-lasting, and secure perimeter protection for industrial and commercial properties public utilities. It is suited for electronic alarm and detection systems- no blind spots for CCTV. It is also a good choice for the Military, airports, secure units and prisons.

Material: low carbon steel wire

SURFACE TREATMENT

358 high-security fence available follow surface treatment

1. hot dipped galvanized wire + PVC coated

2. Electro galvanized wire + PVC coated

3. hot dipped galvanized after welding

4. Electro galvanized after welding

SPECIFICATIONS 358 high-security fence 2D Fence Panels

Panel-Type A(2D view)
Mesh	Wire Thickness	Surface Treatment	Panel Width	Height
76.2×12.7mm	Horizontal wire:3,3.5,4mm Vertical wire: 4mm	Galvanized and Electrostatic polyester powder coated or hot-dipped galvanized.	2.5m or 2.2m	1800mm
				2000mm
				2100mm
				2200mm
				2400mm
				2500mm
				3000mm
Weld strength:-75% of the minimum tensile strength of the wire; Tensile range 540-690 N/m²

3D Fence Panels

Panel-Type B(3D View)
Mesh		Wire Thickness		Surface Treatment		Folds Nos	Panel Width		Height
76.2×12.7mm		Horizontal wire:3,3.5,4mm Vertical wire: 4mm		Galvanized and Electrostatic polyester powder coated or hot-dipped galvanized.		3	2.5m or 2.2m		1800mm
						3			2000mm
						4			2100mm
						4			2200mm
						4			2400mm
						5			2500mm
						6			3000mm
Weld strength:-75% of the minimum tensile strength of the wire; Tensile range 540-690 N/m²
Panel-Type C(2D View, adding wire)
Mesh	Wire Thickness		Surface Treatment		Panel Width			Height
100×15mm	Horizontal wire:3.5mm Vertical wire: 5.5mm		Galvanized and Electrostatic polyester powder coated or hot-dipped galvanized.		2.5m or 2.2m			1800mm
								2000mm
								2100mm
								2200mm
								2400mm
								2500mm
								3000mm
With additional horizontal wire of 3.5mm at 18cm intervals
Weld strength:-75% of the minimum tensile strength of the wire; Tensile range 540-690 N/m²

"358 fence" comes from its measurements of 3"×0.5"×8 gauges, which equates to approx. 76.2mm×12.7mm×4mm (Length×Height×Diameter) in metric. Three hundred fifty-eight security fences are challenging to penetrate, with the small mesh aperture being effectively finger proof and extremely difficult to attack using conventional hand tools. Three hundred fifty-eight fences are recognized as one of the most difficult to break through the barrier because it is difficult to climb. It is called security fencing and high-strength fencing.

Products Reference	Height (mm)	Width (mm)	V(mm)	H	Wire Thickness
Anti-climb-900	900	2400	75	12.5/25	4
Anti-climb-1200	1200	2400	75	12.5/25	4
Anti-climb-1500	1500	2400	75	12.5/25	4
Anti-climb-1800	1800	2400	75	12.5/25	4
Anti-climb-2100	2100	2400	75	12.5/25	4
Anti-climb-2400	2400	2400	75	12.5/25	4
Anti-climb-2700	2700	2400	75	12.5/25	4
Anti-climb-3000	3000	2400	75	12.5/25	4
Anti-climb-3300	3300	2400	75	12.5/25	4
Anti-climb-3600	3600	2400	75	12.5/25	4
Post Specification	50x50	50x75	65x65	60x60	4
Razor wire on the top: According to the client's request.

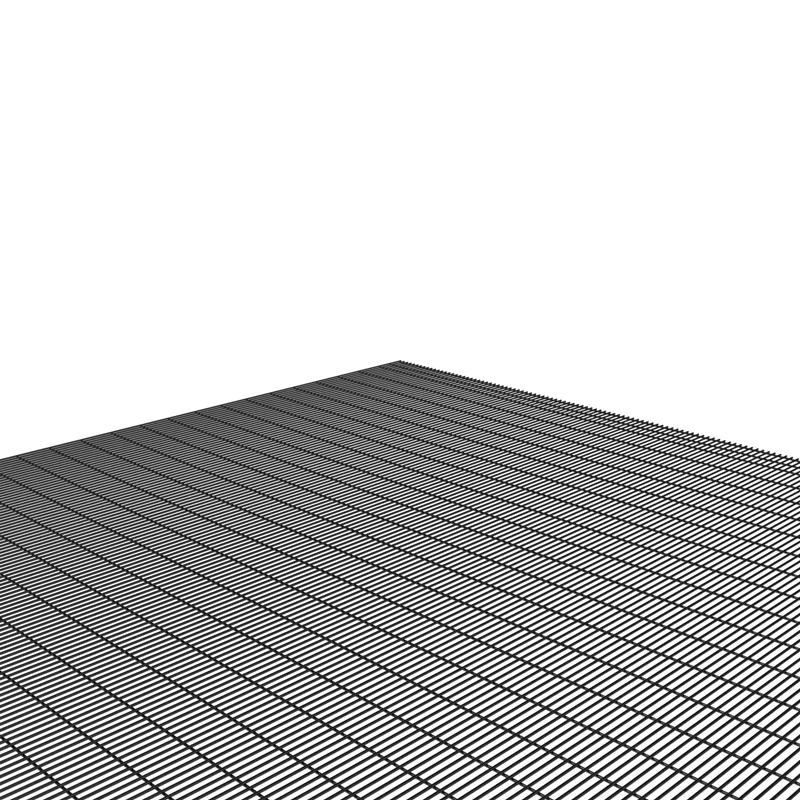

358 High-Security Fence Images
